  SAFETY WORK PLATFORMS
for forklifts



SAFETY WORK PLATFORMS

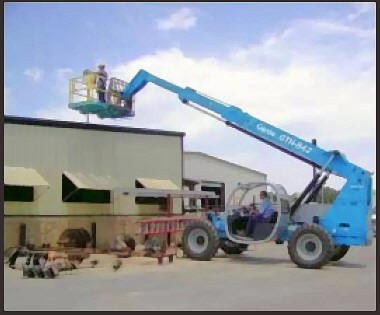

TURN YOUR FORKLIFT
INTO AN
AERIAL WORK PLATFORM

new improved entrance Gate Design
         &
modular component guardrails

Other Features *  Goes where scissor-lifts can't *  Faster than scaffold *  Provides a wider platform than boom lifts * Reaches over obstructions *  Simple and Inexpensive EXCEEDS OSHA & ANSI REQUIREMENTS




Fork Pocket Size: 48" long x 7 3/4" x 3" ID / Center to Center of Fork Pockets: 38 / Pocket Ends are open


 Full Perimeter Guard Rail System constructed of 112" square steel tubing & consisting of a 42" high top rail, a mid rail, and 512" high intregel toeboards. Access gates with spring hinges and spring loaded latches provide self-closing and latching gate action for added safety are provided at each end. The modular component design allows for easy replacement of individual components. Entire Guard Rail System can be easily removed and laid flat inside platform for transportation.



*Deck consists of a strong but lightweight engineered steel frame with expanded metal deck.

*The Universal Fit Slip-On-the-Forks design can be used with both Extendible Reach and Straight Mast forklifts. Forks slide into steel fork pockets and are secured with two heavy duty steel pins behind the heel of the forks. They are designed for use with a 48" or wider carriage and 48" long forks up to 7" wide and 234" thick. Forks longer than 48" can be used, however, they will extend out past the front of the platform.

*The Quick-Tach models are built to fit specific makes & models of forklifts that are equipped with a quick-tach. The forks and carriage are removed and the Platform attaches to the boom.

*All Models are rated at 1,000 lbs. load capacity. Rating applies to platform only and does not reflect capacity of forklift.

*Optional Mast Protection Screen (Model 1250) protects personnel from moving parts of forklift mast. Constructed of square steel tubing and expanded metal, the screen measures 42" wide x 84" tall. It attaches to the back guardrail with u-bolts. A mast protection screen should be used with all straight mast forklifts and with any others where a mast poses a safety hazard.
