  Scoop-N-Mix Concrete Mixer
for Skid-Steer Loaders



Model 140

A BUCKET AND MIXER ALL IN ONE

Scoop sand and gravel in the bucket position

Rotate to mixer position, add cement, water and mix

Discharge concrete thru side chute or

Tilt mixer down and discharge out the front



  The new Scoop-N-Mix Skid-Steer Concrete Mixer combines the advantages of a

loader and a concrete mixer into one piece of equipment. This unique product provides

the most efficient and economical way to produce small quantities of thoroughly mixed

concrete, transport it to often difficult to reach pour sites, and then put it in place.


  Producing and Placing Concrete with the
 Scoop-N-Mix is Simple, Fast, and Easy

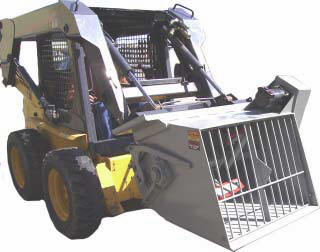

  Rotate the mixer into a bucket loading position
 and, as with a loader bucket, scoop up the sand and gravel
 for the mix. The back-breaking labor of loading by hand
 is eliminated.
  Rotate mixer back to its upright mixing position and
 break bags of cement into the mixer using the built-in
 bag splitter. Water is then added and within a few
 short minutes concrete is ready for placement.

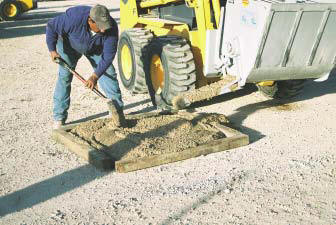

  Discharge Concrete in one of two ways. Either through
 a mechanical lift gate on the side of the mixer and down
 a chute, or by simply tilting the mixer down and discharging
 out the top. The speed and quantity of discharge can be
 easily controlled using either method.

 THE NEW SCOOP-N-MIX...
 the fastest and most economical way to produce
 small volumes of good quality concrete.

 We are all aware that ready-mix companies don't want to deliver
 less than full truckloads of concrete. Furthermore, even if you can
 get small quantities delivered, you will pay a much higher price and
 will probably be the last on the list for delivery. With the Scoop-N-Mix
 and your skid-steer, you can produce good quality concrete within
 minutes, and do it without the back-breaking labor of hand loading a mixer.
 You will have concrete when you need it, where you need it, and
 at a very economical cost.

  The Scoop-N-Mix features a new improved design. This new design utilizes a revolving paddle
 mixing action, a method far superior to augers when it comes to producing well-mixed concrete.
 The revolving paddles are driven by a strong hydraulic motor through a dependable chain and
 sprocket drive. The hydraulic motor is powered by the auxiliary hydraulics of the skid-steer.
 The new chain and sprocket drive takes the shock-load off the hydraulic motor when
 mixing paddles are reversed. This protects the hydraulic motor and greatly extends motor life.
 Paddle shaft is carried by heavy-duty roller bearings with convenient grease zerks for easy maintenance.
 Replaceable neoprene pads protect the paddles and are adjustable and reversible for longer life.
 Abrasion Resistant Steel� prolongs life of drum.
 Model 140
 Construction and Design

 All steel welded construction
 Mixing Drum abrasion resistant steel
 Built-in cement bag breaker
 Side discharge mechanical lift gate
 24" x 12" Side Chute
 Reversible neoprene pads for mixer paddles
 Chain & sprocket drive
 Mixing Specifications

 The Scoop-N-Mix is a concrete mixer - not a grout
 mixer, however it can mix grout if the mix design
 incorporates a proper amount of 3/8" pea gravel.
 Mixing capacity  9 ft3  1/3 yd3
 Recommended minimum slump  3"
 Maximum coarse aggregate size 3/4"
 Mixing action  reversible revolving paddles
 Skid-Steer Requirements

 Skid-Steer mounting universal quick-tach
 Recommended skid-steer rated capacity 1600 lbs. or greater
 Auxiliary Hydraulics 12 to15 gpm (high-flow not required)
 Hydraulic Hoses & Quick-Disconnects included


 Dimensions and Weight

 Mixer Drum width  36" ID
 Overall width 50"
 Overall height 35"
 Overall depth 30"
 Empty weight 890 lbs.
